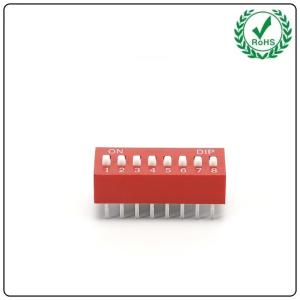

24VDC 8 Position Slide Type DIP Switch ,25mA
Black 3 Position PIANO Type SPST 2.54mm Pitch SMD Gull Wing DIP Switch
Waterproof Electronic Dip Switch 8 Position 5P Single Pole Single Throw 2.54 Pitch Piano Type Dip Swit
Manufacturer datasheets provide essential performance and specification information about each DIP switch.
This information is vital for choosing the best DIP switch for a particular application. Outside of the obvious
specifications like number of positions and actuator type, here are some additional specifications to keep in
mind
DIP switches'n Features
1 Multiple Occasions, with multi-gear structure design, switch slide power evenly, good sense of paragraph
2 Fire Retardant, UL94-V0 injection molding, strong pressure resistance
3 Link Contacts, small contact resistance, reliable and stable
4 Appearance is clean, solid and stable
5 Convenient installation
DIP Switch's Specification
| MECHANICAL | | 1).Operation Force | 1000gf max. | | 2).Stroke | 2.00mm | | 3).Operation Temp | -40deg C to 85deg C | | 4).Storage Temp | -40deg C to 85deg C | | 5).Positions | 3 position | | ELECTRICAL | | 1).Electrical Life | 2000 operations cycles | | 2).Non-Switching Rating | 100mA, 50VDC | | 3).Switching rating | 25mA, 24VDC | | 4).Contact Resistance | 50mOhms max. at initial;100mOhms max.after life test. | | 5).Insulation Resistance | 100MOhms,500VDC | | 6).Dielectric Strength | 500VAC/1 minute | | 7).Circuit | SPST | |
Dip switch as a manual operation of a micro switch, dip switch in communication, security and many other
equipment products are widely used. There are two pins ON the back of each key corresponding to the dip
switch, to the ON side, then the following two pins through; Otherwise disconnect. These four keys are
independent and have nothing to do with each other. This type of device is mostly used for binary coding.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1 More than 2,000 models of switches and sockets.
2 Monthly production capacity: 30 million pieces.
3 MOQ: 5,000pcs, it’s negotiable.
4 Good quality with competitive price.
5 We can offer free samples with shipping and taxes pay by the buyer.
6 Various operation force, height, and color for your choice.
7 The discount depends on your order quantity.
1. Q: How long and how to get sample from us ?
A:
1) If you need some sample to test ,we can make as per your request, please provide us PDF, DWG or
STEPformat file for making.
You should pay for the transportation freight of samples and sample cost (cost from USD100 to USD600,
depend on the project),
while the sample cost can be refundable if order is confirmed and QTY goes up to 200,000pcs or depends
on your product amount .
2) Lead time for making sample: about 7 days
3) The transportation freight of samples: the freight depends on the weight and packing size and your area.
For more information kindly contact as below :
Contact person: Miss Vicky Xie
Email:kkg@kkg
Tel: 0086-0769-82036866
Whatapp: 13377785035
